Introduction
Industrial facility managers face an ongoing challenge: how to remove paint and coatings without damaging sensitive substrates like thin aluminum aircraft skins or composite components. Traditional chemical stripping generates hazardous waste requiring expensive disposal, while sandblasting damages delicate surfaces through aggressive substrate erosion.
Plastic media blasting (PMB) addresses these issues through a dry abrasive process that uses soft, angular plastic particles to strip coatings while preserving substrate integrity.
This guide is designed for maintenance professionals and businesses in aerospace, automotive, marine, and manufacturing sectors who need effective coating removal without substrate damage.
PMB is widely referenced in military specifications like MIL-P-85891 and NAVAIR standards. However, practical implementation details—media selection, pressure control, substrate compatibility, and reclamation systems—are often unclear.
This article explains what PMB is, how it differs from alternatives, the step-by-step process, media types, applications, and critical factors affecting performance.
TLDR
- PMB uses recyclable plastic particles at 25-40 psi to strip coatings without substrate damage
- Eliminates hazardous chemical waste and reduces stripping costs by up to 80% versus chemical methods
- Choose from seven media types matched to your substrate—urea formulations for steel, acrylic for aluminum
- Reuse media 10-12 cycles before replacement, lowering operational costs
- Not suitable for fiberglass, certain composites, or deep corrosion removal
What Is Plastic Media Blasting?
Plastic media blasting is a surface preparation method that drives soft, angular plastic particles against a surface using compressed air to remove coatings, contaminants, or perform light deburring while preserving the underlying substrate (base material).
Plastic Media Blasting (PMB) removes paint and coatings completely down to bare substrate with minimal surface profile change, no chemical residue, and no erosion or warping.
PMB operates at lower pressures (25-40 psi) than conventional abrasive blasting, using media specifically engineered to fracture paint layers without cutting into the base material.

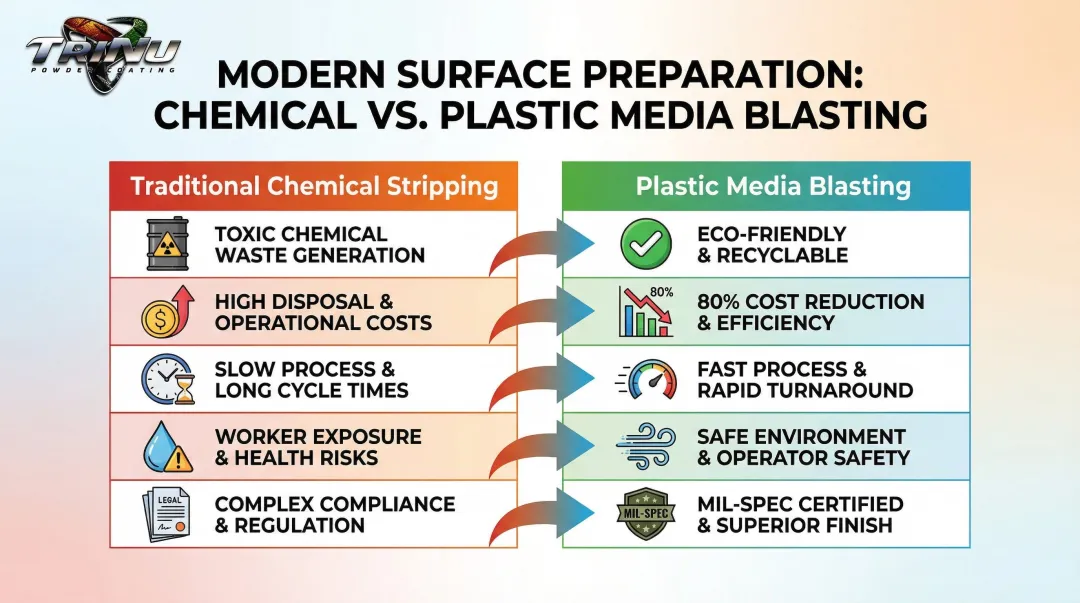

How PMB Compares to Other Methods
These advantages make PMB ideal for delicate or precision work where substrate preservation matters.
Key differences:
- Sandblasting: Uses hard abrasives at high pressure (80+ psi), creating deep profiles and damaging thin materials
- Chemical stripping: Generates hazardous waste, operates slowly, and leaves residues needing extra cleaning
- Natural media: Walnut shells and corn cob round off quickly, reducing efficiency and requiring frequent replacement
Why Plastic Media Blasting Is Used in Industrial Applications
PMB adoption increased when environmental regulations eliminated methylene chloride and other hazardous paint strippers, forcing industries to find alternatives that reduced hazardous waste generation and disposal costs.
Key Industrial Requirements:
- Substrate preservation: Critical for thin aluminum aircraft skins down to 0.016 inches, where aggressive blasting causes warping or penetration
- Speed: PMB reduced F-4 aircraft stripping from 364 hours to 183 hours compared to chemical methods
- Consistency: Repeatable results across multiple operators and facilities
- No water disposal: Eliminates wastewater treatment and disposal requirements
Common Problems Without PMB:
- Chemical strippers generate hazardous waste streams requiring expensive disposal under RCRA regulations
- Sandblasting damages substrates through excessive material removal, creating warping in thin sections
- Manual stripping is labor-intensive, inconsistent, and still requires chemical solvents for complete removal
These performance and environmental advantages explain why PMB became military specification-driven under MIL-P-85891. NAVAIR approved it for multiple aerospace applications, and industry standards now recognize it as best practice for aerospace and defense maintenance.
The method also offers operational advantages in automotive restoration and industrial maintenance.
The EPA documented $915,000 in annual savings at Hill Air Force Base by replacing chemical stripping with PMB for F-4 aircraft, with payback periods under 1.5 years.
This savings comes from eliminating wastewater disposal costs and reducing hazardous waste volume by up to 90%.
How Plastic Media Blasting Works
Plastic media blasting (PMB) strips paint and coatings without damaging the surface underneath. The process uses compressed air to propel angular plastic particles through a blast nozzle at 25-40 psi.
The plastic media hits the surface with enough energy to fracture paint layers but not enough force to harm the base material.
What goes into the process:
- Virgin or recycled plastic media selected by type (MIL-P-85891 specification) and grit size
- Compressed air supply providing sufficient CFM at required pressure
- Contained blasting environment (cabinet, booth, or room)
- Reclamation system separating reusable media from waste
How the Blasting Process Removes Coatings
What happens during operation:
Plastic particles strike the painted surface at controlled velocity. The angular media edges cut under paint layers, causing them to chip and fracture away.
Spent media and paint chips fall to a collection area. The reclamation system then separates them using cyclone separators and vibrating screens.
Process control variables:
| Variable | Setting | Impact |
|---|---|---|
| Air pressure | 25-40 psi | Higher pressure increases aggressiveness but accelerates media breakdown |
| Nozzle distance & angle | 6-12 inches at 45-90° | Controls cutting effectiveness and coverage |
| Media type & size | Matched to substrate | Determines compatibility and coating removal rate |
| Blast duration | Monitored continuously | Ensures complete removal without substrate damage |
The result: The process completely removes paint and coatings while preserving the substrate's exact dimensions. Surface profile increases minimally, and waste consists of paint chips plus degraded media.
With proper technique, PMB works effectively on aerospace components, marine hardware, and architectural elements—applications where dimensional precision matters.
Step 1: Surface Preparation and Masking
Areas not requiring blasting must be masked with tape or plugs. Remove heavy grease through light pre-cleaning (though PMB handles light oils). Verify substrate type is PMB-compatible per specifications—NAVAIR 01-1A-509 for aerospace applications specifies authorized materials and media types.
Step 2: Media Selection and Equipment Setup
Select appropriate media type based on substrate:
- Type V acrylic for soft metals, aluminum, and composites
- Type II urea for steel and harder substrates
Choose grit size based on coating thickness—finer grits for thin coatings, coarser for heavy industrial paints. Load media into the blast pot and set air pressure between 25-40 psi.
Step 3: Blasting Operation
Maintain consistent nozzle distance of 6-12 inches from the surface, using 45-90 degree impact angles for best cutting action. Keep the nozzle moving continuously to prevent localized heating or over-blasting.
Work in systematic patterns ensuring complete coverage while monitoring for substrate exposure. Prolonged blasting in one area can damage even durable materials.
Step 4: Media Reclamation and Waste Separation
The reclamation system uses cyclone separators and vibrating screens to remove dense particles (paint chips, contaminants) from lighter plastic media. Cleaned media returns to the blast pot for reuse—typically 10-12 cycles before particles become too small or rounded. Waste material is collected for disposal or recycling through media lease programs.

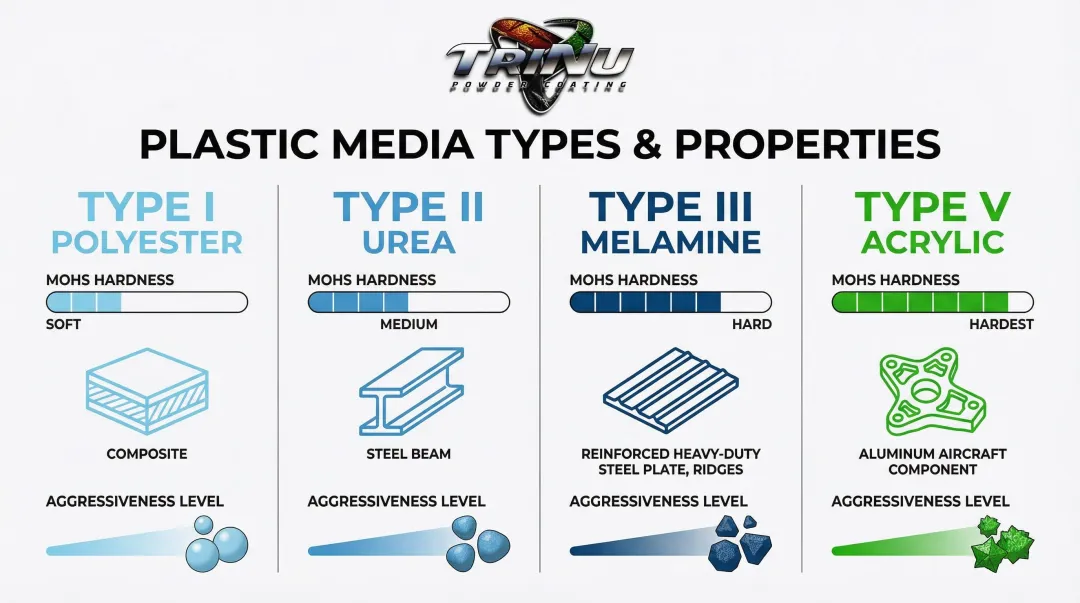

Types of Plastic Blasting Media
Military specification MIL-P-85891 defines seven types of plastic media, each engineered for specific applications. The types vary in hardness, aggressiveness, and substrate compatibility, allowing technicians to match media to job requirements.
Most Common Types
| Type | Composition | Hardness (Mohs) | Best For |
|---|---|---|---|
| Type I | Polyester | 3.0-3.5 | Softest; delicate parts and composites (where authorized) |
| Type II | Urea formaldehyde | 3.5-4.0 | Hard, durable; steel surfaces and heavy coatings |
| Type III | Melamine | 4.0-4.5 | Hardest; most aggressive cutting action |
| Type V | Acrylic | 2.0-3.0 | Softer; aircraft aluminum and delicate substrates |
Choosing the Right Media Type
Understanding these material properties helps you select the appropriate media for your project:
- Softer media (Type V): Protects aluminum, magnesium, and composites where substrate damage is unacceptable
- Harder media (Type II, III): Removes heavy industrial coatings from steel and cast iron efficiently
- Grit size selection: Match to coating thickness—coarse for thick layers, fine for precision work
Applications, Factors, and Limitations of Plastic Media Blasting
Where PMB Is Applied
Primary application areas:
- Aerospace maintenance: Aircraft paint stripping, component refurbishment, engine part cleaning
- Automotive restoration: Complete vehicle paint removal, engine degreasing, chassis preparation
- Marine industry: Turbine cleaning, vessel maintenance, propeller refurbishment
- Manufacturing: Mold and die cleaning, deflashing cast parts, deburring machined components
When in operational lifecycle:
PMB occurs at several key points:
- Scheduled maintenance cycles requiring surface preparation
- Before inspection procedures requiring bare metal visibility
- As part of refurbishment and overhaul programs
- Before repainting or recoating operations
- For tooling maintenance between production runs
Typical triggers:
Common triggers include:
- Coating failure or degradation
- Corrosion discovery requiring bare metal inspection
- Specification requirements for coating removal before NDT (non-destructive testing)
- Restoration projects
- Contamination requiring complete cleaning
Proper PMB technique requires extensive experience. Service providers like TriNu Powder Coating, with over 10 years specializing in aerospace, architectural, military specification, and marine grade applications, ensure compliance with industry standards throughout the process.
Key Factors That Affect PMB Performance
Understanding what influences PMB effectiveness helps optimize results and prevent substrate damage.
Input factors:
- Fresh media cuts faster; degraded media becomes less effective after 10-12 cycles
- Thin substrate skins require gentler approach with softer media grades
- Epoxy primers are harder to remove than topcoats
- Heavy oils or corrosion products affect removal rates
Operating condition variables:
- Insufficient CFM reduces effectiveness regardless of pressure
- High humidity (above 60%) causes media clogging
- Worn nozzles reduce efficiency; replace when diameter increases 50%
- Consistent operator technique prevents substrate damage
Equipment and system dependencies:
- Reclamation system must maintain media cleanliness below 200 ppm contamination
- Ventilation and dust collection meeting OSHA 29 CFR 1910.94 (75 CFM per square foot cross-draft)
- Blast cabinet or booth sized appropriately for parts being processed
- Continuous-flow airline respirators for operator safety
When PMB May Not Be Appropriate
Substrate limitations:
- Fiberglass components: PMB too aggressive for glass fiber structures
- Certain composite structures: Advanced carbon composites not authorized by some specifications
- Honeycomb sandwich structures: Risk of cell wall damage in some configurations
- Magnesium requiring FPI: PMB can peen soft metals, potentially masking cracks during fluorescent penetrant inspection
Constraint situations:
- Heavy corrosion pitting removal required—PMB removes coatings but not deep corrosion products
- Substrate too thin or fragile even for low-pressure blasting
- Subsequent inspection methods incompatible with PMB surface effects
When alternatives are better:
Chemical stripping may be preferred for complex geometries with deep recesses that blast nozzles can't reach. Hand stripping works better for very small localized areas. Laser ablation suits extremely delicate historic artifacts or precision components where even minimal contact is unacceptable.
Common Issues and Misconceptions About Plastic Media Blasting
Incorrect assumption about pressure: PMB does not work like sandblasting at any pressure. It requires the specific 25-40 psi range—higher pressure damages substrates and breaks down media too quickly, while lower pressure fails to remove coatings effectively.
Beyond pressure settings, operators often oversimplify other critical aspects of the process:
- Believing all plastic media types are interchangeable: Type II on aluminum aircraft skins can cause damage versus Type V, which is specifically formulated for soft metals
- Assuming PMB removes all surface defects: It removes coatings but not corrosion products or pitting beneath
- Thinking any blasting equipment works: Systems designed for sand or steel grit require modifications for proper PMB operation
Understanding the difference between coating removal and substrate conditioning prevents costly mistakes:
PMB removes coatings but does not improve substrate condition beneath—corroded metal remains corroded after blasting. Surfaces appear "clean" but may still have embedded contamination requiring additional solvent cleaning.
Blast profile is minimal but not zero, affecting coating adhesion differently than chemically stripped surfaces.
Operators frequently misinterpret these effectiveness indicators:
- Complete paint removal doesn't mean inspection-ready: Residual media dust must be removed with compressed air or solvent wipes
- Media darkening shows contamination: But doesn't necessarily mean media is spent and requires replacement
- Fast stripping may signal problems: Over-aggressive blasting may be damaging the substrate without visible signs
Conclusion
Plastic media blasting (PMB) uses recyclable plastic particles at controlled low pressure (25-40 psi) to remove coatings and contaminants while preserving substrate integrity. This dry abrasive process delivers both environmental and economic benefits.
The environmental advantage: no hazardous chemical waste. The economic advantage: reduced disposal costs and faster processing times.
Success with PMB depends on controlling key operational factors:
- Media selection matched to substrate type
- Pressure control within specification ranges (typically 25-40 psi)
- Understanding substrate compatibility limitations
- Properly maintained reclamation systems
Getting these parameters right ensures consistent results without substrate damage or regulatory issues.
Choose PMB based on substrate type, coating characteristics, and your finishing requirements—not as a default solution. Some situations call for alternatives: chemical stripping handles complex geometries more effectively, while laser ablation suits extremely delicate components.
For applications where PMB is the right fit—particularly architectural, marine, and mil-spec projects requiring precision coating removal—professional media blasting services ensure proper technique, equipment, and quality control. The investment in correct implementation protects your substrates and delivers the clean surface preparation these demanding applications require.
Frequently Asked Questions
What is the plastic media blasting method?
Plastic media blasting uses soft, angular plastic particles propelled by compressed air at 25-40 psi to strip paint and coatings without damaging underlying substrates. The media is recyclable 10-12 times before degrading.
Is media blasting better than sandblasting?
Plastic media blasting is better for applications requiring substrate preservation—thin aluminum, composites, and delicate parts. Sandblasting remains superior for heavy rust removal and steel preparation where aggressive surface profiling is needed.
How many times can plastic blast media be reused?
Plastic media can typically be recycled 10-12 times before particles become too small or rounded to effectively remove coatings. Actual lifespan depends on media type, coating being removed, and reclamation system efficiency in separating contaminants.
What types of plastic media are used for blasting?
Common types include Type II urea formaldehyde (hard, best for steel), Type III melamine (hardest, most aggressive), and Type V acrylic (softer, ideal for aluminum and delicate substrates). Selection depends on substrate material and coating type.
Does plastic media blasting remove rust and corrosion?
Plastic media blasting effectively removes paint and coatings but does not remove rust or corrosion from metal surfaces. Corroded substrates require additional chemical or mechanical treatment. TriNu Powder Coating's media blasting services can be combined with powder coating refinishing to protect treated surfaces.
What safety equipment is required for plastic media blasting?
Operators must wear continuous-flow airline respirators per OSHA 29 CFR 1910.94, protective blast suits, and hearing protection. Additional precautions are required when stripping lead chromate or zinc chromate paints due to heavy metal dust hazards.
