Introduction: Architectural Powder Coating – Where Form Meets Function
Building facades, window frames, and structural elements face relentless UV exposure, temperature swings, and environmental stress—yet must maintain their appearance year after year. Traditional paints fail within 5-7 years, requiring costly recoating cycles.
Architectural powder coating solves this challenge, delivering superior durability and virtually unlimited design possibilities that last 20+ years.
Powder coating has become the industry standard for metal building components, from curtain wall systems on high-rises to railings on coastal developments.
Unlike traditional paint that fades and chips, properly specified powder coatings maintain their finish for decades with minimal maintenance.
In this guide, you'll learn what architectural powder coating is, how it differs from standard industrial finishes, which AAMA specifications match your project requirements, and how to select the right coating system for your building's environmental exposure and design vision.
TLDR: Key Takeaways About Architectural Powder Coating
- Lasts 10-20+ years compared to 3-5 years for traditional liquid paint
- Produces zero VOC emissions, supporting LEED certification and green building goals
- AAMA-certified performance standards ensure the right coating durability for your project's environment
- Achieves 90-95% material use through powder reclamation, minimizing waste
- Available in unlimited colors and finishes for complete design flexibility
What Are Architectural Powder Coatings?
Architectural powder coating is a dry finishing process where electrostatically charged powder particles bond to metal surfaces, then cure under heat (typically 400°F) to form a protective, decorative layer.
The electrostatic charge ensures even coverage while thermal curing creates a chemical crosslink that delivers exceptional durability.

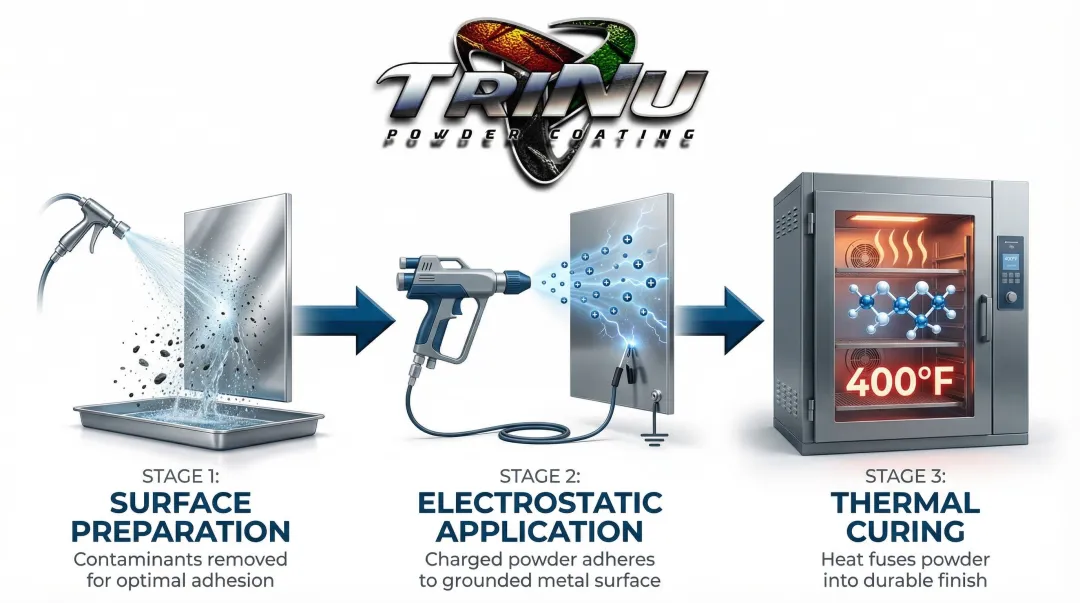

The three-step process:
- Surface preparation - Cleaning and chemical pretreatment prepare the metal surface for optimal adhesion
- Electrostatic application - Charged powder particles are sprayed onto grounded metal components
- Thermal curing - Heat triggers chemical crosslinking that forms a continuous, durable film
How Architectural Coatings Differ from Standard Industrial Finishes
Architectural-grade powder coatings are specifically engineered for building applications that demand long-term exterior performance. Key differences include:
- Enhanced UV stabilizers that prevent color fading and chalking
- Superior weather durability through specialized resin formulations
- AAMA compliance requiring rigorous South Florida weathering tests
- Extended warranty periods (10-20 years versus 1-5 years for industrial coatings)
Chemical Composition and Resin Systems
Three primary resin systems lead architectural applications:
| Resin Type | AAMA Standard | Key Characteristics | Best For |
|---|---|---|---|
| Polyester | 2603 | Standard thermoset resins crosslinked with TGIC or Primid | Interior applications and economical exterior protection |
| Super-Durable Polyester | 2604 | Enhanced formulation with isophthalic acid; 5 years South Florida testing | Exterior durability with cost balance |
| Fluoropolymer (PVDF/FEVE) | 2605 | 70% fluoropolymer content (Polyvinylidene Fluoride or Fluoroethylene Vinyl Ether) | Maximum UV resistance and color retention |
Why Powder Coating Has Become the Architectural Standard
Powder coating has become standard for architectural metalwork due to environmental and performance advantages. Zero VOC emissions support sustainability goals while 90-95% material utilization minimizes waste.
Design flexibility with unlimited colors and finishes enables architects to realize their vision, while lifecycle cost-effectiveness justifies the higher initial investment.
Benefits of Architectural Powder Coating for Building Projects
Superior Durability and Weather Resistance
Architectural powder coatings outlast traditional paint. Outdoor-rated powder systems last 10-15 years while conventional liquid paint requires repainting every 3-5 years. AAMA 2605-rated coatings exceed 20 years in many applications.
Performance advantages include:
- Chip and scratch resistance - Crosslinked coating structure resists mechanical damage
- Fade resistance - UV stabilizers maintain color integrity for decades
- Corrosion protection - AAMA 2605 coatings withstand 4,000 hours of salt spray testing
- Chalking resistance - Premium coatings maintain surface integrity even in harsh UV environments
These coatings excel in demanding environments including coastal areas with salt spray exposure, industrial zones with pollution, and high-altitude locations with intense UV radiation.
Environmental and Health Advantages
Powder coating delivers significant sustainability benefits. The process contains no solvents and releases zero or near-zero VOCs, qualifying powder-coated metals as "inherently nonemitting sources" for LEED v4 credits without additional emissions testing.
The process also achieves exceptional material efficiency. Overspray is captured and reused, reaching efficiency rates of 90-95% compared to much lower rates for liquid paints. This near-zero waste approach minimizes environmental impact while reducing material costs.
Design Flexibility and Aesthetic Options
Powder coating offers extensive color and finish options for architectural specifications:
- Unlimited color palette - Custom color matching to any architectural specification
- Diverse finish options - Gloss, matte, satin, textured, metallic, and specialty finishes
- Consistent appearance - Uniform color across large building surfaces
- Anodized effects - Metallic finishes mimicking anodized aluminum with better color consistency
This design freedom enables architects to specify exact aesthetic requirements while meeting performance standards.
Cost-Effectiveness Over Building Lifetime
While powder coating requires higher initial investment than standard paint, lifecycle economics strongly favor powder coating. Liquid paint requires repainting every 3-5 years, while AAMA 2604 coatings last 10+ years and AAMA 2605 systems exceed 20 years with minimal maintenance.
Lifecycle savings include:
- Eliminated repainting costs lasting 10-20 years
- Reduced labor expenses from eliminated scaffolding, access equipment, and building disruption
- Lower maintenance limited to periodic cleaning versus frequent touch-ups
- Extended asset life through superior corrosion protection of underlying metal
On-site repainting typically costs significantly more than factory-applied finishes due to quality control challenges and access requirements.
Performance in Extreme Conditions
Architectural powder coatings are engineered for harsh environments. AAMA 2605 coatings undergo rigorous testing including temperature extremes, high humidity exposure, and accelerated weathering that simulates decades of real-world conditions.
Marine environments within 50m of shoreline demand specialized coating expertise. Projects requiring mil-spec standards for government and defense facilities need AAMA Certified Products applied through QC Certified Programs to meet demanding specifications for coastal, industrial, and institutional applications.

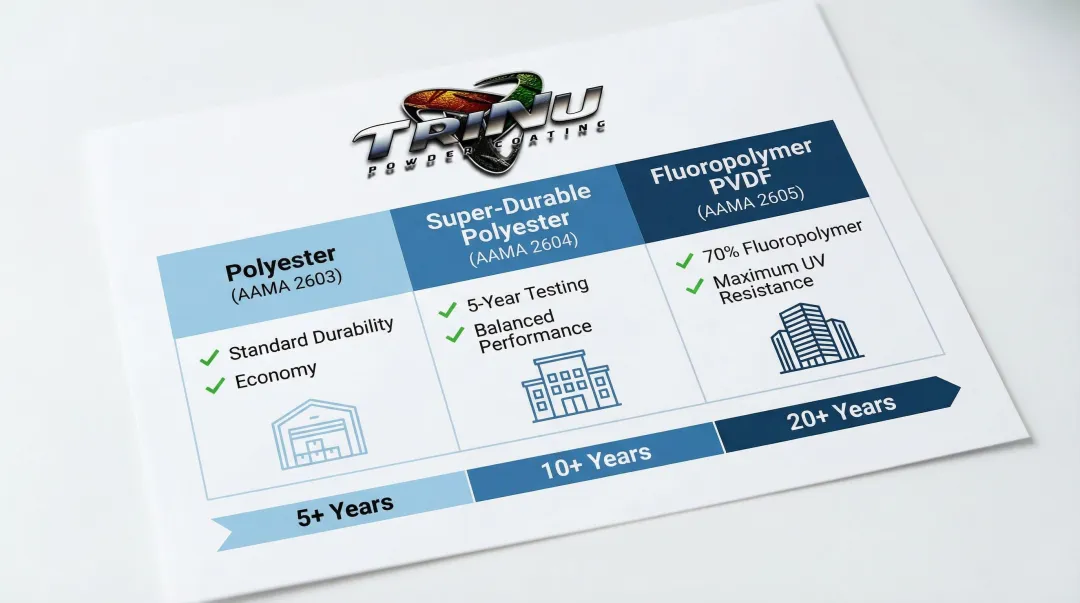

Types of Architectural Powder Coatings
Polyester Powder Coatings (AAMA 2603)
AAMA 2603 represents the entry-level architectural specification, suitable for interior applications and protected exterior locations.
These standard durable polyester resins offer good color retention and hardness at the most economical price point.
Typical applications:
- Interior architectural elements and decorative panels
- Residential windows and doors in sheltered locations

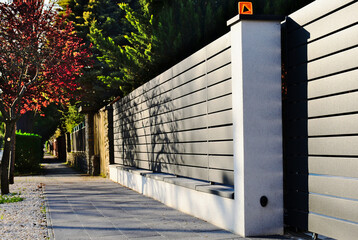

- Fencing and light-duty exterior components
Performance: 1-year South Florida weathering requirement with "slight" fade tolerance.
Super-Durable Polyester (AAMA 2604)
AAMA 2604 coatings deliver enhanced UV resistance through super-durable polyester formulations. These coatings require 5 years of South Florida exposure with ≥30% gloss retention, offering 5x the weathering performance of standard polyesters.
Ideal for:
- Storefronts and commercial entrances
- Window and door frames in moderate-exposure locations
- Handrails and architectural trim
- Low-rise curtain wall systems
Manufacturers typically offer 10-year warranties on AAMA 2604 systems, making them the value choice for standard exterior applications.
Fluoropolymer/PVDF Coatings (AAMA 2605)
AAMA 2605 represents the premium architectural coating specification. These 70% fluoropolymer systems require 10 years of South Florida exposure with ΔE ≤5 color change and ≥50% gloss retention.
Applications demanding maximum performance:
- High-rise curtain walls and building facades
- Coastal architecture exposed to salt spray
- Monumental projects requiring 20+ year warranties
- Severe weather exposure locations
PVDF and FEVE fluoropolymer coatings deliver superior resistance to chalking, fading, and UV degradation. Gloss retention remains exceptional even after decades of exposure.
Specialty Architectural Coatings
Specialized formulations address unique building requirements beyond standard AAMA specifications:
- Antimicrobial coatings - Surface hygiene for healthcare and public spaces
- Textured finishes - Dimensional interest and slip resistance
- Heat-reflective coatings - Reduce heat absorption and improve energy efficiency
- Metallic finishes - Premium aesthetic effects for signature features
Choosing the Right Type for Your Project
Match coating specification to environmental exposure and performance expectations:
- Interior or sheltered exterior: AAMA 2603 (economical, good appearance)
- Standard exterior exposure: AAMA 2604 (enhanced durability, 10-year warranty)
- High-rise, coastal, or severe exposure: AAMA 2605 (maximum performance, 20+ year warranty)
Key selection factors:
- Geographic location and UV intensity
- Proximity to coastline or industrial pollution
- Building height and wind exposure
- Color requirements and aesthetic goals
- Budget and expected building lifespan
With over 10 years of experience in architectural, marine-grade, and mil-spec applications, TriNu Powder Coating helps assess project-specific requirements and recommend the right coating system.
Understanding AAMA Standards & Certifications
The American Architectural Manufacturers Association (AAMA) establishes voluntary performance standards that define coating durability for architectural applications.
These specifications provide objective benchmarks for comparing coating systems and ensuring long-term performance.
The Three AAMA Specifications
AAMA 2603 - "Good" performance level for interior and light exterior applications
AAMA 2604 - "High" performance level for general exterior architectural use
AAMA 2605 - "Superior" performance level for severe exterior conditions
Each specification defines strict testing protocols that coatings must pass, including accelerated weathering, salt spray resistance, humidity exposure, and specific performance benchmarks.
Testing Protocols Behind AAMA Standards
| Test | AAMA 2603 | AAMA 2604 | AAMA 2605 |
|---|---|---|---|
| Florida Exposure | 1 year | 5 years | 10 years |
| Salt Spray | 1,500 hours | 3,000 hours | 4,000 hours |
| Humidity | 1,500 hours | 3,000 hours | 4,000 hours |
| Color Retention | Slight fade | ΔE ≤5 | ΔE ≤5 |
| Gloss Retention | Slight fade | ≥30% | ≥50% |
South Florida weathering represents the most demanding natural exposure testing, with intense UV radiation, high humidity, and salt-laden air. After years of this extreme exposure, the coatings must maintain color, gloss, and adhesion.
Importance of AAMA Certification
Working with AAMA-certified coating suppliers and applicators ensures coating performance matches specifications. TriNu Powder Coating uses AAMA Certified Products and maintains a QC Certified Program, providing quality assurance that coatings meet architectural performance requirements.
Matching AAMA Specification to Project Requirements
Different applications demand different protection levels:
- Interior applications: AAMA 2603 provides sufficient protection at lowest cost
- Standard exterior (offices, retail, moderate climates): AAMA 2604 offers enhanced durability with 10-year warranties
- Severe exterior (high-rise, coastal <50m from water, industrial zones, high-UV regions): AAMA 2605 delivers maximum protection with 20+ year warranties
Your building location, exposure level, and expected lifespan drive which specification makes sense. Certified applicators can match coating systems to project-specific environmental conditions.
Applications in Modern Architecture
Exterior Applications
Architectural powder coating dominates exterior building applications where weather resistance and appearance retention are critical:
- Building facades and cladding deliver consistent color across large surface areas with superior fade resistance

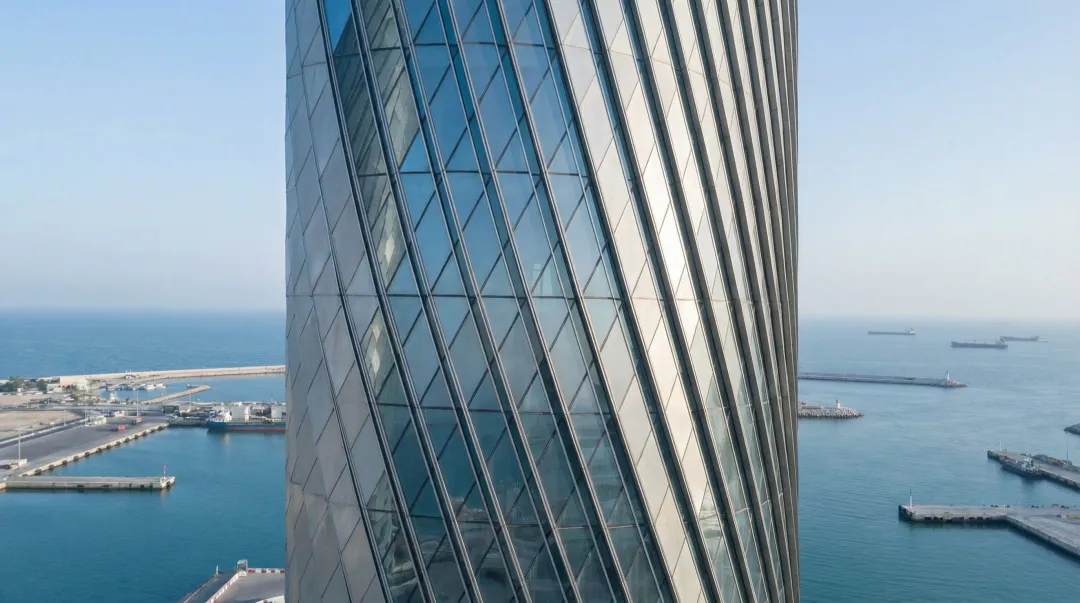

- Curtain wall systems use lightweight, durable finishes for high-rise glazing frames
- Window and door frames - Weather-tight performance with color-matched aesthetics
- Architectural louvers and sunshades - Dimensional stability under thermal cycling
- Railings and balustrades provide scratch resistance for high-contact surfaces
- Canopies and awnings protect against corrosion in moisture-prone applications
The weather resistance, color consistency, and low maintenance requirements make powder coating ideal for exposed applications. Refinishing these elements later would be both costly and disruptive.
Interior Applications
Interior architectural elements benefit from powder coating's durability and easy maintenance:
- Decorative wall panels - Custom colors and textures for design impact
- Ceiling systems - Uniform appearance across large installations
- Staircase railings - Durability in high-traffic, high-contact areas
- Elevator cabs and lobbies - Easy cleaning and scratch resistance
- Architectural trim and accents - Design consistency throughout building interiors
For healthcare and institutional settings, antimicrobial powder coating formulations provide enhanced surface hygiene while maintaining aesthetic appeal.
Specialized Architectural Projects
Certain architectural projects demand specialized coating performance beyond standard applications:
- Marine-grade applications - Coastal buildings, marina structures, and waterfront developments require superior corrosion resistance. Projects within 50m of shorelines face constant salt spray exposure. TriNu Powder Coating has specialized in marine-grade architectural applications for over 10 years, developing deep expertise in these demanding environments.
- Mil-spec applications - Government, defense, and institutional buildings must meet specific performance standards. TriNu's decade of experience with military specifications ensures rigorous quality control and federal compliance.
- Industrial environments - Buildings in chemical processing, manufacturing, or heavy industrial zones need coatings that resist weather, chemical exposure, and pollution simultaneously.

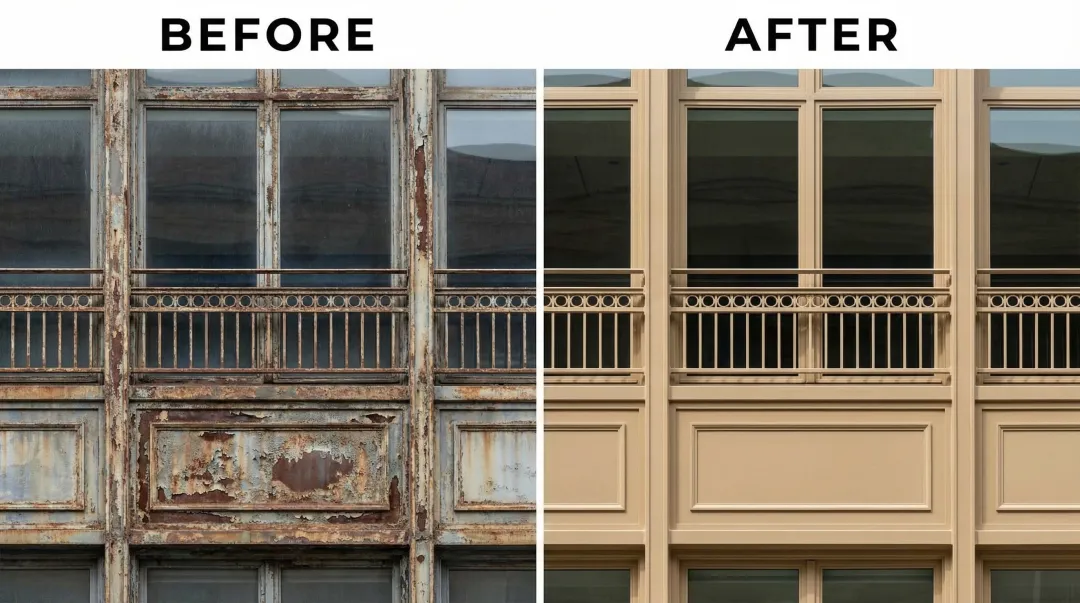

Renovation and Restoration Projects
Powder coating offers cost-effective solutions for restoring existing architectural metalwork:
- Refinishing historic metalwork - Restore appearance while preserving original components
- Updating building facades - Modernize aesthetics without complete replacement
- Modernizing window frames - Extend service life of structurally sound frames
The economics favor refinishing over replacement. Powder coating existing components costs substantially less than fabricating and installing new elements. Performance matches or exceeds the original finish.
Design Possibilities: Colors, Finishes & Innovation
Extensive Color Options
Architectural powder coating offers extensive color choices through multiple systems:
- RAL and Pantone libraries provide hundreds of standardized colors with consistent formulations
- Custom color matching delivers precise alignment with architectural specifications, brand colors, or existing building elements
Trending architectural colors:
- Deep blacks and charcoal grays for contemporary aesthetics
- Crisp whites for modern minimalism
- Earth tones (bronzes, coppers, terracottas) for natural integration
- Bold accent colors for signature architectural statements
Finish Options and Design Impact
Surface finish dramatically affects architectural perception. Popular options include:
- High-gloss: Modern, sophisticated aesthetic with maximum color depth and light reflection
- Matte: Contemporary minimalism with soft, non-reflective appearance
- Satin: Balanced sheen offering subtle sophistication
- Textured: Dimensional interest that conceals surface imperfections and provides tactile variation
- Metallic and bonded metallic: Premium appearance resembling anodized aluminum, bronze, or copper with superior color consistency
Emerging Innovations
Beyond traditional finishes, architectural powder coating continues advancing with new technologies:
- Color-shifting and iridescent finishes - Appearance changes with viewing angle and lighting conditions
- Enhanced antimicrobial formulations - Improved surface hygiene for healthcare and public spaces
- Self-cleaning nanotechnology coatings - Hydrophobic surfaces that shed dirt and reduce maintenance
- Heat-reflective coatings - Solar-reflective pigments reduce building heat gain and improve energy efficiency
These technologies expand design options while addressing real-world performance challenges like energy efficiency and maintenance reduction.
Frequently Asked Questions
What are architectural powder coatings?
High-performance finishing systems formulated for building applications, offering superior durability, weather resistance, and AAMA standards compliance (2603/2604/2605) for facades, window frames, and structural elements.
What are the types of architectural powder coatings?
Primary types include polyester (AAMA 2603) for interior/light exterior use, super-durable polyester (AAMA 2604) for general exterior, and fluoropolymer/PVDF (AAMA 2605) for severe conditions. Specialty options include antimicrobial, textured, and heat-reflective formulations.
How much do architectural powder coatings cost?
Costs vary by coating type, project size, and complexity. While initial investment exceeds standard paint, lifecycle value is superior—AAMA 2604 systems last 10+ years and AAMA 2605 systems exceed 20 years with minimal maintenance.
How long do architectural powder coatings last?
Lifespan depends on coating type and environmental exposure: AAMA 2603 lasts 5+ years, AAMA 2604 exceeds 10 years, and AAMA 2605 fluoropolymer delivers 20+ years with proper application and maintenance.
Which AAMA standard should I specify for my project?
Use AAMA 2603 for interior/protected areas, AAMA 2604 for standard exterior (10-year warranties), and AAMA 2605 for high-rise buildings, coastal locations, or severe weather requiring 20+ year warranties. Certified applicators can provide project-specific guidance.
How is architectural powder coating maintained?
Periodic cleaning with mild detergent and water using soft cloths or brushes prevents scratching. Coastal environments require cleaning every 3 months; inland locations need maintenance every 12-24 months.
TriNu Powder Coating brings over 10 years of specialized experience in architectural, marine-grade, and mil-spec applications. Using AAMA Certified Products and maintaining a QC Certified Program, their technical team can match the right coating specification to your project requirements. Call +1 727-316-6700 to discuss your architectural powder coating needs.
![Powder Coating Bumper: Total Cost Breakdown & Pricing Guide [2026]](https://file-host.link/website/trinupowdercoating-ie2q5a/assets/blog-images/02fb4cbe-2525-42fd-ad0d-d7a3f8e43ddf/1771452425429224_c312ca6e1dd14305bb5f830de7b14620/1771452425429224_c312ca6e1dd14305bb5f830de7b14620.webp)
